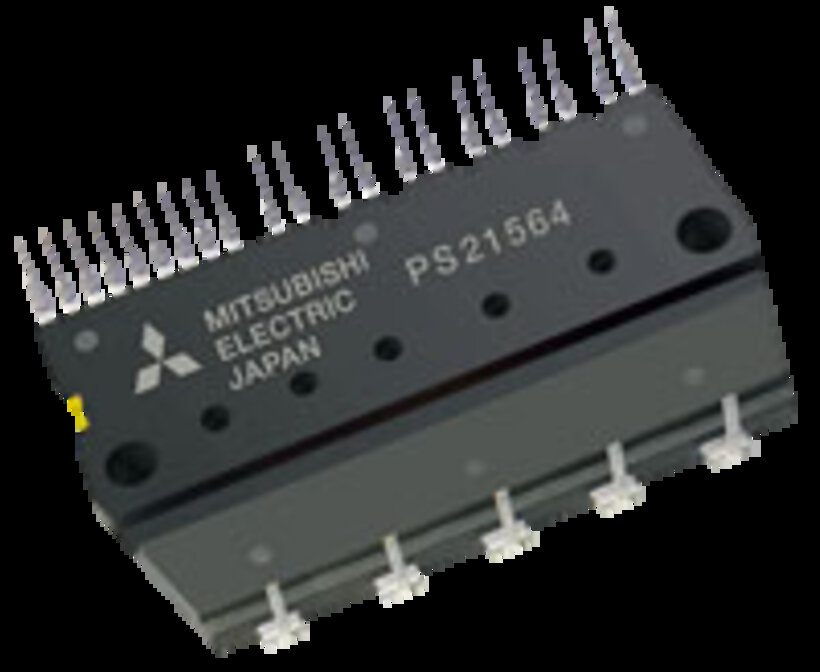

600V Industrial Mini DIPIPM
Dual-in-line Package Intelligent Power Modules
- 6th Generation CSTBT(TM)
- Designed for low power motor control (0,2kW - 3,7kW at 240 AC line voltage)
- Lead free compact dual-in-line transfer mold package
- Rated currents ranging from 5A-50A and V(CES) = 600V
- Built-in Bootstrap diode with current limiting resistor
- Protection functions:
- SC: Short circuit (N) with external shunt resistor
- UV: Control supply under voltage (P, N)
- Analog temperature sensor output (Tc) - 2500V(rms) isolation voltage
- N-side open emitter structure
- RoHS comliant
- Two type paclage (Mini DIPIPM(TM) Ver. 3 package* for 5-20A / Mini DIP Ver. 4 package* for 20-50A)
Mitsubishi Electric is the technology leader in the field of IGBT modules - now in their 7th generation - and Intelligent Power Modules (IPM). The compact design offers significant advantages, especially for harsh environmental conditions such as in drive technology.
