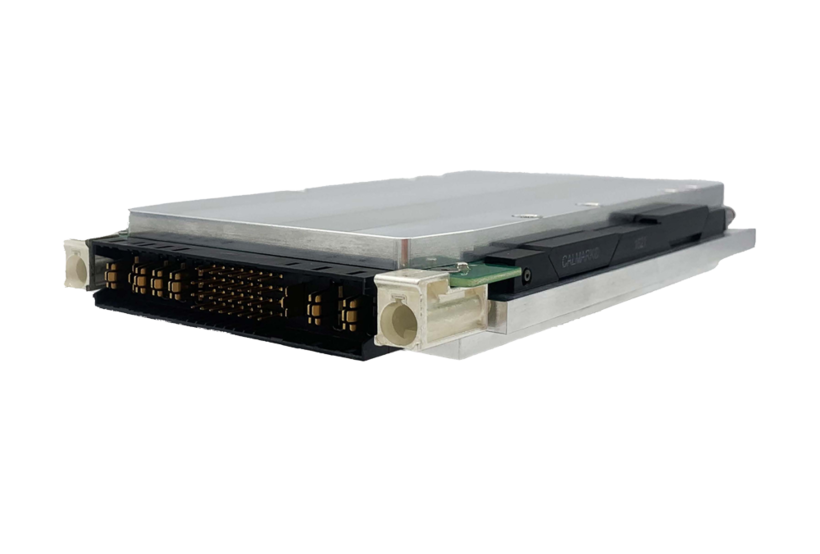

VPX600DC3U
DC-DC 600 W
PST VPX600DC3U is a very high power density 600W DC-DC converter in conduction cooled VPX format incorporating input EMI filtering, input transient protection, output protections, conformal coating, very robust mechanical package and connections.
The converter provides high power density thanks to the integration of Vicor Corp. DCM modules, high efficiency, input-to output isolation, soft start, overtemperature protection, input over/undervoltage lockout. The outputs are short-circuit proof.
The 85°C baseplate operation allows operation in high temperature environment. The converter is also protected against transients MIL-STD-704 and MIL-STD-1275, EMI filtered built to meet MIL-STD-461 and ruggedizzed according MIL-STD-810.
Input ranges: 16-50Vdc
6 outputs 600W max.
3U*5TE*160mm
Automatic reverse polarity, Surge and transient protected
-40°C to 85°C baseplate
MIL-STD-810 and Severe environment
French manufacturer Power System Technology (PST) specializes in rugged, transient-resistant, industrial-grade AC/DC and DC/DC power supplies built with proven DC-DC modules. Founded in 2001, the company offers both a standard range of power supplies on plug-in cards, in Eurocard format and in sealed enclosures, as well as customized solutions for military, avionics, medical, industrial and renewable energy applications. Of particular interest for traction power supply are the PST 14, PST 22 and PST 23 DC/DC power supplies.
