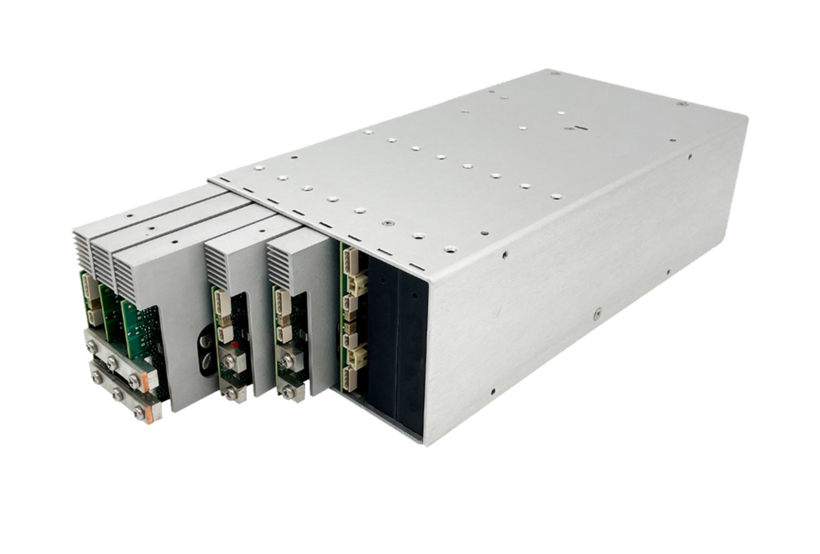

PowerPac4K
AC/DC 4kW Configurable
powerPAC4K is a high power density configurable AC-DC power supply, up to 4000W, fan cooled, incorporang EMI filtering, transient protection, output protections, robust mechanical package and connections required in most of severe environment for industrial, railways, defense type of applications. The Power Factor Correction (PFC) front end provides high power density and a high efficiency thanks to the integration of an interleaved boost conversion.
The output converterPAC’s, inserted in the 8 slots, can be configured in single or dual outputs allowing up to 16 differents outputs from 3V3 to 48Vdc. They can be put in parallel or serialised for high power configuration and integrate individual control and monitoring.
powerPAC4K is a very scalable power supply for industrial, test & measurement and can be ruggedized for more severe environnements.
- Input : 85-265Vac, 47-63Hz or 85-135Vac, 360-440Hz
- 1 to 16 outputs, 4000W Tot. max.
- Each output configurable from 3V3 to 48Vdc, 100-500W max.
- Dimensions : 86*153,5*305mm
- Surge and transient protected
- Fan cooled
- Ruggedization as an option
French manufacturer Power System Technology (PST) specializes in rugged, transient-resistant, industrial-grade AC/DC and DC/DC power supplies built with proven DC-DC modules. Founded in 2001, the company offers both a standard range of power supplies on plug-in cards, in Eurocard format and in sealed enclosures, as well as customized solutions for military, avionics, medical, industrial and renewable energy applications. Of particular interest for traction power supply are the PST 14, PST 22 and PST 23 DC/DC power supplies.
