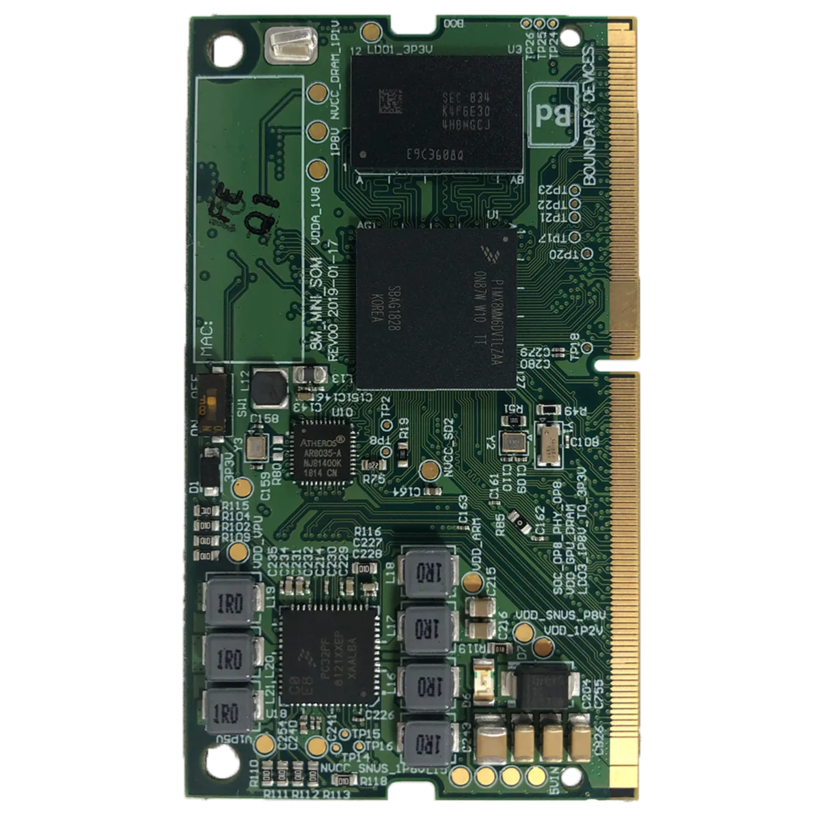

Nitrogen8M Mini SOM
SoM with NXP’s i.MX8M Mini applications processors
The Nitrogen8M Mini SOM features NXP’s i.MX8M Mini applications processors. The Nitrogen8M Mini SOM is designed for mass production use with a guaranteed 10 year lifespan, FCC Pre-scan results, and a stable supply chain. The RAM (1-4GB) and eMMC (16-128) can be modified to fit your requirements. Industrial temperature and conformal coating options are also available.
- Chipset (MPU): 4x Cortex®-A53 cores @ 1.8 GHz (NXP i.MX 8M Mini)
- Chipset (MCU): 1x Cortex®-M4F core (NXP i.MX 8M Mini)
- Wireless Specification
- Wi-Fi 5 (802.11ac)
- Bluetooth 5.0
- Dimensions (L x W): 69.6 x 40
- Audio: Input/Output
- Camera: MIPI-CSI
- Display: MIPI-DSI
- Form Factor: Edge connector
- Interfaces - General
- 1x PCIe
- 2x USB2
- 1x GbE
- 1x SDIO/eMMC
- 12C
- SPI
- UART
- GPIO
- Memory: 2GB or 4GB LPDDR4
- Operating Temp (°C): -40 °C - +85 °C
- SPI: x1 (via Carrier)
- Storage: 8, 16, 32, or 128 GB
- UART: Up to 4 (via Carrier)
- USB: x2 USB 2.0 (via Carrier)
