Arbutus 63301
1-Port USB-C 4K Video and USB 3 5Gbps, 100m CAT 6a Extender (Icron 00-00492)

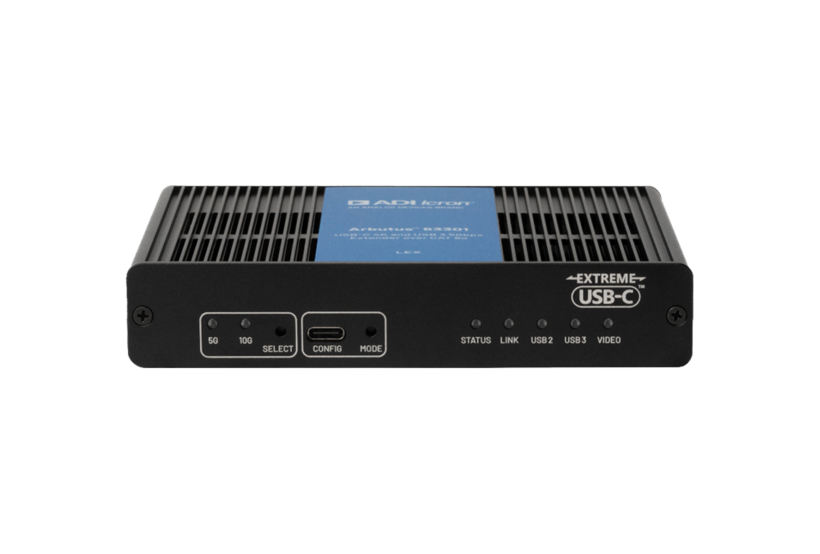

The Icron Arbutus 63301 is an all-in-one video and USB extension system. Utilizing a single USB-C port, the 63301 can extend 4K video and USB 3 over a CAT 6a cable offering a true one cable extension solution.
Unique to this model is the ability to support DP Alt mode on a USB-C connection supporting up to 4Kp60 4:4:4 simultaneously with USB 3 5Gbps. Within USB all transaction types are supported with no hub tiers consumed. The Arbutus 63301 extends up to 100m point-to-point with DC Power applied at the remote end.
- USB Device Support
- Point-to-Point: Up to 100m (328ft) over CAT 6a cable
- USB Bandwidth: Up to 5Gbps
- Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
- Host Compatibility: OHCI, UHCI, EHCI, xHCI
- Maximum Devices: Supports up to 30 devices
- Video Support
- Maximum Resolution: 4196×2160
- Color: RGB 8/10, YCbCr 4:4:4, 4:2:2
- Lane Count/Rate: 4, 2 or 1 Lane operation up to HBR3 8.1Gbps
- Control: DisplayPort MCCS
- EDID: EDID override supported
- HDCP: Version 2.2
Icron Technologies is a developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets such as medical, military, industrial automation, machine vision, ProAV and education. Icrons patented technology extends otherwise limited USB and video signals over many media types including Cat5e, fiber optic, wireless and corporate LAN.
Icron products with the "ExtremeUSB®" suite extend USB transparently - no software drivers are required and all operating systems including Windows, Mac OS X and Linux are supported. With nearly one million units on the market, ExtremeUSB® has been proven reliable even under harsh environmental conditions. Customers rely on Icron products in applications such as professional audiovisual solutions, industrial automation, education, medical diagnostics and imaging, remote desktop enhancements, security, surveillance and military systems.
