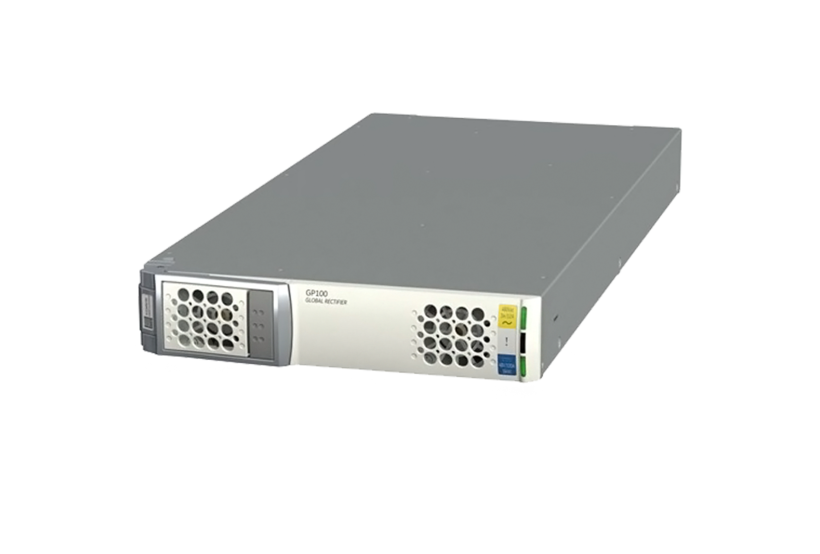

GP100 Series
3Φ Global Platform Line High Efficiency Rectifier
The GP100 series of rectifiers provide significant efficiency improvements in the Global Platform of Power supplies. High-density front-to-back airflow is designed for minimal space utilization and is highly expandable for future growth. The 3Φ - 380/480Vrms input product is designed to be deployed internationally. It is configured with dual-redundant PMBus™ compliant I2C communications busses that allow it to be used in a broad range of applications. Feature set flexibility makes these rectifiers an excellent choice for applications requiring modular, very-high-efficiency AC to - 48VDC intermediate voltages, such as in distributed power.
• High Efficiency 95.8% typical
• Compact 1RU form factor with 30 W/in3 density
• Constant power from 48 – 58VDC
• 6000W from nominal 3Φ-380/480VAC
• Output voltage programmable from 18V – 58VDC
• PMBus compliant dual, redundant I2C serial bus
• Power factor correction (meets EN/IEC 61000-3-2 and EN 60555-2 requirements)
• SEMI-F47 Tested and Compliant
• Output overvoltage and overload protection
• AC Input overvoltage and undervoltage protection
• Over-temperature warning and protection
• Redundant, parallel operation with active load sharing
• Redundant +5V @ 0.75 Aux power
• Remote ON/OFF
• Internally controlled Variable-speed fan
• Hot insertion/removal (hot plug)
• Three front panel LED indicators
• EN/IEC/UL/CSA C22.2 62368-1 2nd edition +A1
• Meets FCC part 15, EN55032 Class A standards
• Meets EN61000 immunity and transient standards
• Shock & vibration: Meets IPC 9592 Class II standards
• Compliant to RoHS Directive 2011/65/EU and amended Directive (EU) 2015/863.
• Compliant to REACH Directive (EC) No 1907/2006
