SM681

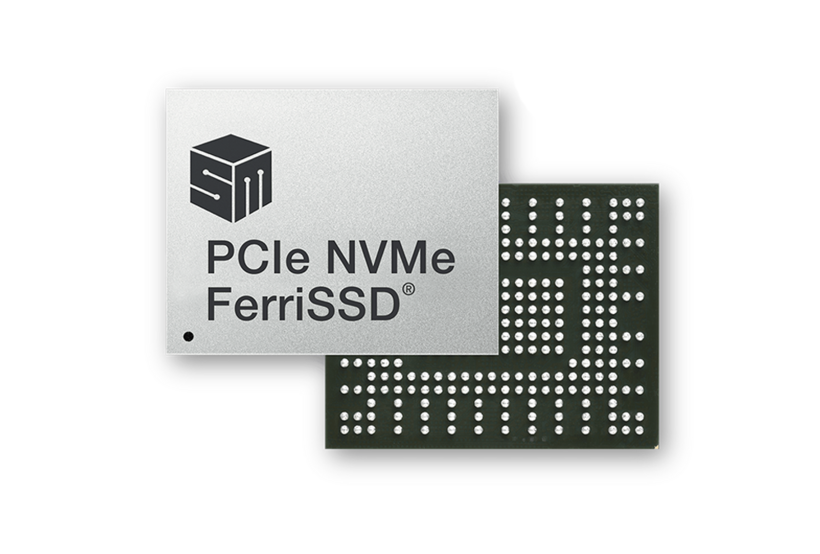

PCIe NVMe FerriSSD®
The PCIe NVMe FerriSSD® family consists of SM689 supporting PCIe Gen3 x4 NVMe 1.3 and SM681 supporting PCIe Gen3 x2 NVMe 1.3 designed optimally for high-performance mission critical applications. By combining industry proven controller technology, NAND flash and passive components into a small single BGA package, PCIe NVMe FerriSSD® simplifies design efforts, reduces time-to-market while protecting from NAND technology migration concerns. Host Interface PCIe Gen3 x2 PCIe Protocal NVMe 1.3 Embedded DRAM DRAM-less Capacity 3D SLCmode 5 – 160GB 3D MLCmode 10 - 320GB 3D TLCmode 15 - 512GB Temperature Commercial 0°C to +70°C Industrial -40°C to +85°C
Do you have questions about our products? Please let us know.
Computer Components
+49 89 614 503 40
computer@hy-line.de

Easy to use

  • Plug & Play only requires format/fdisk prior use
  • Small footprint for space-limited design



Lower total cost of ownership

  • Rugged & Reliable (no moving parts)
  • Eliminate requalification cost from NAND generation change
  • Cost saving with flexible TLC/MLC/SLC modes, configurable capacities



Eliminate down time

  • Supports self-monitoring, analysis and reporting technology commands (S.M.A.R.T.) and advanced SSD Telemetry logging features
  • IntelligentScan with DataRefresh for Data integrity enhancement
  • Full End-to-End data path protection with recovery algorithms
  • SMI´s 4th generation LDPC ECC engine with Group Page RAID
  • Remote firmware update available via secured digital signature

Silicon Motion Technology Corporation is the global leader in developing NAND flash controllers for SSDs and other solid state storage devices.



Silicon Motion is a fabless manufacturer that specialises in developing controller ICs for solid state storage devices such as SSDs, eMMCs and other embedded flash applications, but also for removable storage products such as USB memory. Silicon Motion also manufactures low-power graphics controllers for industrial applications. Here, long-term availability and good support are important features.



Silicon Motion were founded in 1995 in San Jose, California and operate from corporate offices in Hong Kong, Taiwan and the US.



Interface
Rev.
Flash Type
Emb. DRAM
Temperature
Capacity
Title Datasheet Link Shop product online Shop price Rev. Interface Flash Type Emb. DRAM Temperature Capacity
SM681GEA
AE
PCIe Gen3
TLC
no
-40°C - 85°C
16 GB
SM681GEB
AF
PCIe Gen3
TLC
no
-40°C - 85°C
32 GB
SM681GEC
AF
PCIe Gen3
TLC
no
-40°C - 85°C
64 GB
SM681GED
AF
PCIe Gen3
TLC
no
-40°C - 85°C
128 GB
SM681GEE
AF
PCIe Gen3
TLC
no
-40°C - 85°C
256 GB
SM681GEF
AF
PCIe Gen3
TLC
no
-40°C - 85°C
512 GB
SM681GXA
AE
PCIe Gen3
TLC
no
0°C - 70°C
16 GB
SM681GXB
AF
PCIe Gen3
TLC
no
0°C - 70°C
32 GB
SM681GXC
AF
PCIe Gen3
TLC
no
0°C - 70°C
64 GB
SM681GXD
AF
PCIe Gen3
TLC
no
0°C - 70°C
128 GB
SM681GXE
AF
PCIe Gen3
TLC
no
0°C - 70°C
256 GB
SM681GXF
AF
PCIe Gen3
TLC
no
0°C - 70°C
512 GB
