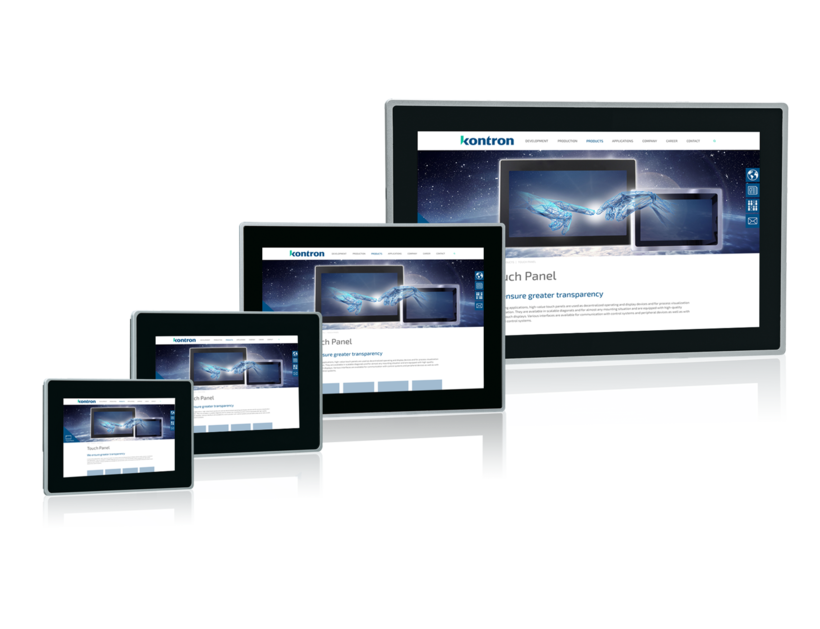

WP Web Panel 3x, 4x, 5x
Innovative Web Panels with scalable performance
The web panels feature an attractive design, high-resolution IPS displays in 7", 10.1" and 15.6", brightness and capacitive multi-touch technology. They also feature scalable processing power based on Quad Core™ Arm® i.MX8M Mini processors and Single or Dual Core™ Arm® NXP i.MX6 processors. The robust touch screen in an aluminum or stainless steel frame is specially designed for use in industrial environments. In the standard version, the Panel PCs are designed for installation in control cabinets or consoles and are protected to IP65 at the front.
The integrated QIWI Toolkit software package provides the user with a performance optimized HTML-5 browser. It offers possibilities for easy configuration and parameterization, for example the configuration of the network, display properties, time and language settings as well as a file and package manager. The "look and feel" of the browser interface can be customized. For example, the language, font, style and company logo as well as the look, size and layout of the virtual keyboard. Asian, Arabic and Cyrillic characters can be entered directly into the visualization. The optional MicroBrowser from "IniNet" offers, for PLC controllers with an integrated CODESYS WebVisus web server, fastest response times.
Thanks to the robust design and the possibility of use at ambient temperatures from 0°C to +55°C, the Web Panels are optimally suited for use in harsh industrial environments. The modular design also allows easy adaptation to customer-specific requirements.
- Capacitive multi-touch
- Display sizes: 7", 10,1" and 15,6" versions
- IP65 aluminium front bezel, optional stainless steel
- Performant HTML-5 browser or optional with MicroBrowser
- QIWI-Software-Toolkit improves performance and simplifies configuration
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
