Vortex86MX+ SoC

Single-Chip-PC

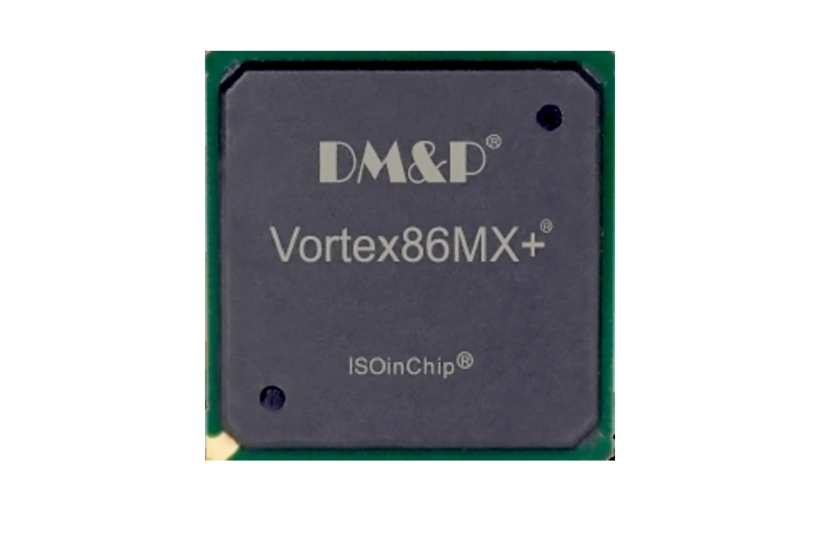

Der Vortex86MX+ ist ein x86-kompatibler System-on-Chip (SoC) in einem 90nm Verfahren hergestellt und entwickelt mit einem Stromverbrauch von weniger als 1 Watt. Er integriert mehrere verschieden Funktionen wie multiple I/O Ports, wie RS-232, Parallel, USB und GPIO, BIOS, Watch Dog Timer, Power Management, LAN, und einen Grafik-Controller in einem einzigen BGA-Chip.

Do you have questions about our products? Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10
sales@hy-line.de
In seinem 720-Pin-BGA Gehäuse, packt der Vortex86MX+ 32kb L1 Cache, 4-way 256KB L2 cache, PCI rev. 2.1 32-bit/33MHz, DDR2-RAM-Controller, IPC (Internal Peripheral Controller mit DMA und Interrupt-Timer/Counter enthalten), Fast Ethernet MAC, UART mit FIFOm USB 2.0 Host und IDE-Controller. Mit der Unterstützung für DOS, Windows, Linux und diversen Echtzeitbetriebssystemen, bietet er die ideale Lösung für Embedded-Systeme und Kommunikationsprodukte wie Thin Clients, NAT-Router, Home-Gateways, Access Points und Tablet-PCs.
  • x86 32bit Processor Core
  • Floating point unit support
  • Embedded I/D Separated L1 Cache
  • Embedded L2 Cache
  • DDRII Control Interface
  • IDE Controller
  • LPC (Low Pin Count) Bus Interface
  • GPU Control Unit
  • MAC Controller x 1
  • PCI Control InterfaceISA Bus Interface
  • HDA Controller
  • DMA Controller
  • Interrupt Controller
  • Counter/TimersReal Time Clock (Internal Mode or External Mode)
  • FIFO UART Port x 3 (3 sets COM Port) Parallel PorGeneral Programmable I/O
  • USB 2.0 Host Support
  • USB 1.1 Host Support
  • PS/2 Keyboard and Mouse Interface Support
  • Redundant System Support
  • Speaker out
  • Embedded 2MB Flash
  • I²C bus x 2
  • Servo Control interface support
  • General Shift interface support
  • JTAG Interface supported for S.W.debugging
  • Input clock
    • 14.318MHz
    • 32.768KHz
  • Output clock
    • 24 MHz
    • 25 MHz
    • PCI clock
    • DDRII clock
  • Operating Voltage Range
    • Core voltage: 1.0 V ± 5%
    • I/O voltage: 1.8V ± 5% , 3.3 V ± 10 %
  • Operating temperature: 0 ~ 70°C
  • Package Type: 31x31mm, 720 Ball BGA

DMP Electronics Inc., a member of the DM&P Group, was founded in 1989 and develops industrial control systems. Since the beginning DMP focused on the development of x86-based computer-on-a-chip products. The high level of integration, coupled with low power loss makes the single-chip x86 computers an ideal solution for industrial, control, medical and automation applications.

Eval Board Vortex86MX+ Das Evaluation Board ist ein SBC (Single Board Computer) der perfekt auf das SoC (System-on-a-Chip) abgestimmt ist. Für Entwickler ist dieses Evaluation Board ideal, dazeitintensives Fehlersuchen und Konfigurieren von SBC und SoC entfällt. Die Performance des Prozessors mit den I/O-Schnittstellen kann sehr einfach geprüft werden. Ferner bietet es als Referenzdesign eine ideale Vorlage für Ihre Entwicklung.
Der Kern des Boards beinhaltet SoC, GPU und DDR2. Ebenso sind die I/O-Schnittstellen LAN, USB, RS232, GPIO, PS/2, Printer, IDE WDT und PCI integriert.
