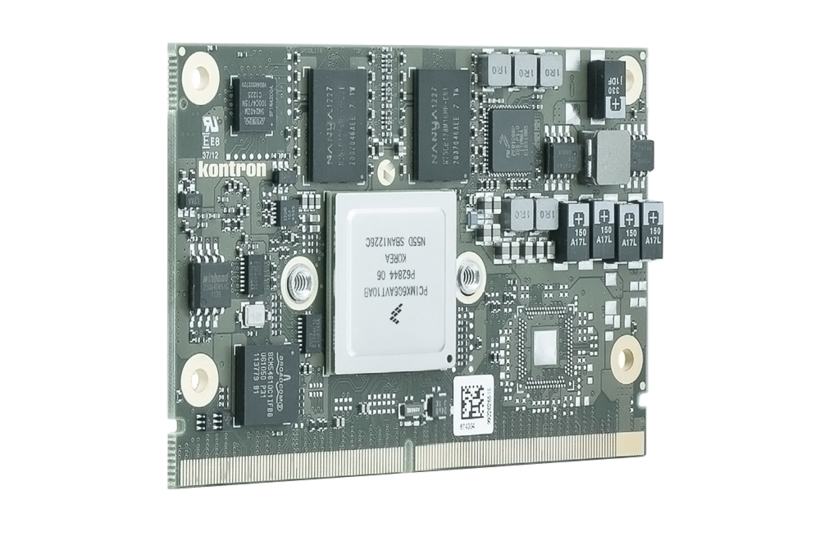

SMARC-sAMX6i
Ultra Low-Power (ULP) Computer-on-Module
- Compliance: SMARC - Smart Mobile Architecture by SGET - small size
- Abmessungen: 82mm x 50mm
- CPU:
- Freescale i.MX 6
- Single, Dual and Quad Core ARM Cortex-A9
- Main Memory: bis zu 2GB DDR3 Memory down
- Graphics Controller:
- Dual Display
- HD 1080p Decode/Encode
- 2D/3D acceleration
- Ethernet Controller: integrated
- Ethernet: 10/100/1000 MBit Ethernet
- SATA:
- 1x SATA (dual/quad core)
- -(solo)
- Flash Onboard: 2-64GB eMMC
- PCI Express/PCI support: 3x PCIe x1
- Panel signal:
- Parallel LCD 18/24 bit
- LVDS Single Channel 18/24bit
- HDMI
- USB: 3x USB 2.0 (one OTG)
- Serial:
- 2x RX/TX (Ser1/3)
- 2x UART (Ser0/2)
- Interface:
- 12x GPIO, SDIO, 5x I²C, 2x I²S, 2x SPI, SPDIF, WDT, 2x CAN
- Camera Interface (PCAM, CSI)
- Operating System: Linux, Android, WEC7
- Power Supply: 3V-5.25V Single level Lithium Ion cells or fixed 3.3V/5V power supplies
- Power Consumption: Typ. 5W
- Power Management: Battery and System Management
- Temperatur: Operation: -40° to 85°C, Storage: -40° to 85°C
- Luftfeuchtigkeit: 93% relative Luftfeuchtigkeit bei 40 °C, nicht kondensierend (gemäß IEC 60068-2-78)
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
Evaluation Carrierboard für ultra-low-power ARM und SoC basierte Computer-on-Modules
Breites Schnittstellenangebot für flexible Designs
Duale Spannungsversorgung für mobile oder stationäre Applikationen
Folgt der SMARC (Smart Mobile Architecture) Spezifikation der SGET Features
- Supported Modules: Accepts SMARC™ Modules 82mm x 50mm and 82mm x 80mm
- Abmessungen: 210mm x 200mm
- HDMI
- Parallel LCD port
- LVDS KLAS Adapter – 24 bit color packing, single and dual channel LVDS
Audio Controller: On-board I2S Audio Codec
Hard Disk:
- SATA MO-300 site
- Micro SD Card slot
- eMMC Mezzanine site
- PCIe slot
- Mini-PCIe sites (2) with shared SIM slot
Lab bench power input option – 3.0V to 5.25V input voltage range
Support for Li-Ion batteries and on-board charging circuit
Serial:
- RS232 support for all 4 SMARC serial ports
- 2x CAN
- 7x USB
- USB OTG micro AB connector
- USB R/A Type A connector
