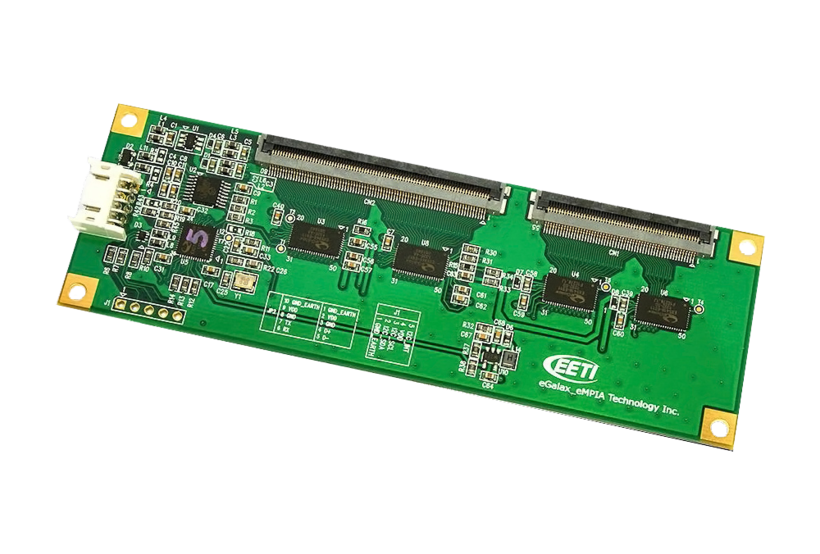

EXC7900 Controllerboard
Up to 10-finger operation and palm recognition
The EXC7900 PCAP controller is the first 10-finger controller with optimized features for thin front glass. It supports palm detection, is water-resistant, and supports resolutions of up to 2048x2048.
- Up to 3 mm cover glass
- Up to 10-finger operation
- Palm recognition
- Waterproof
- Operating temperature -25 to 80°C
- Interface: USB, RS232
- Resolution: 2048x2048
- Response time: Max. 25 ms
- Controller Chip-On-Flex
- Controller chip on ribbon cable (Flex) of the touch sensor possible
- Free design of the flex cable in terms of position, length, and interface
- Single-chip and multi-chip variants
The manufacturer EETI based in Taipei is a specialist for touchscreen controllers. Twelve years of experience in research and development of touchscreen solutions enable EETI to provide controller hardware and firmware for all mainstream touch technologies as well as software and drivers for all major operating systems. EETI touch solutions are projected capacitive, surface capacitive, resistive, surface acoustic wave and infrared, five of the most important touch technologies.
