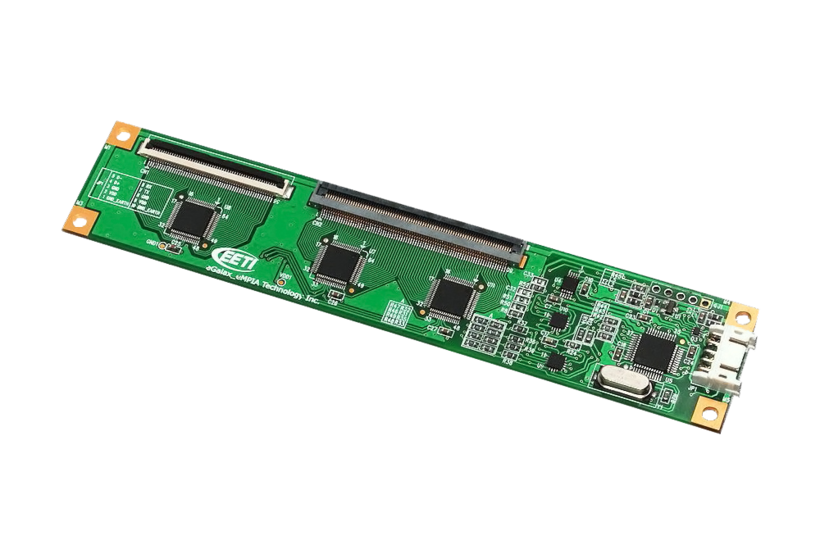

EXC7200 Controllerboard
Up to 4-finger operation and 8mm cover glass
The EXC7200 PCAP controller has been successfully used in a wide range of industrial applications for over five years. The controller is available in many board variants and from our warehouse. Its extensive features make it an ideal solution for indoor and outdoor applications.
- Up to 8 mm cover glass
- Up to 4-finger operation
- Glove operation
- Operating temperature -40 to 85°C
- Interface: USB, RS232, I2C
- Resolution: 2048x2048
- Power consumption (mA)
- Active mode: max. 50 mA
- Idle mode: 5 mA
- Sleep mode: 0.5 mA
- Response time: max. 20 ms
- Controller chip-on-flex
- Controller chip possible on ribbon cable (flex) of touch sensor
- Free design of flex cable in terms of position, length, and interface
- Single-chip and multi-chip variants
The manufacturer EETI based in Taipei is a specialist for touchscreen controllers. Twelve years of experience in research and development of touchscreen solutions enable EETI to provide controller hardware and firmware for all mainstream touch technologies as well as software and drivers for all major operating systems. EETI touch solutions are projected capacitive, surface capacitive, resistive, surface acoustic wave and infrared, five of the most important touch technologies.
