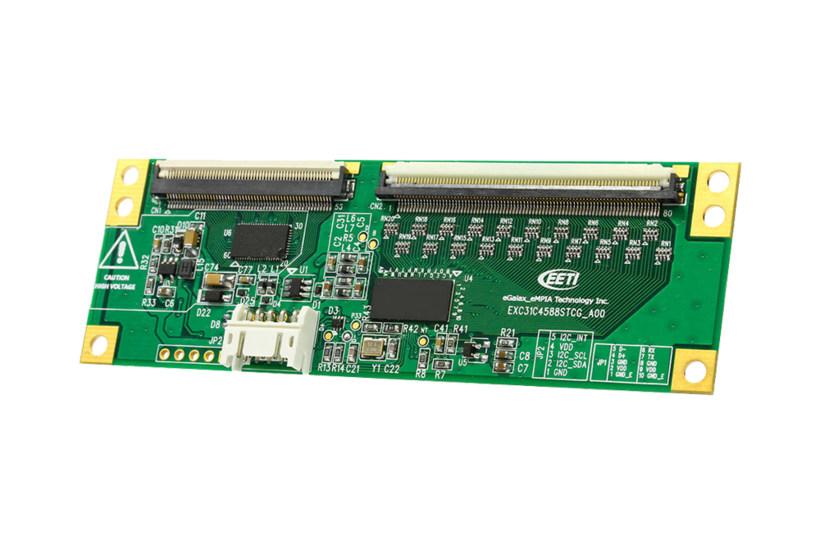

EXC3000 Controllerboard
The latest generation of controllers for demanding applications
The EXC3000 is a latest-generation PCAP controller. It combines the advantages of the EXC7200 and EXC7900. The controller is ideal for all industrial and medical applications and is available from stock in many board variants. It supports 10-finger operation and palm recognition, is water-resistant, and offers significantly improved EMC properties.
- Up to 8 mm cover glass
- Up to 10-finger operation
- Palm recognition
- Water resistant (water standing on the glass or rain is filtered out)
- Significantly improved EMC properties
- Supports active and passive stylus pens
- Windows 8/10 certified
- Air gap between sensor and front glass possible (up to 0.3 mm)
- Display can be placed directly behind sensor (supports zero air-gapped structure)
- Operating temperature -40 to 85°C
- Interface: USB, RS232, I2C
- Resolution: 4096x4096
- Power consumption (mA)
- Active mode: < 100 mA
- Idle mode: < 50 mA
- Sleep mode: < 5 mA
- Response time: Max. 25 ms
- Controller chip-on-flex
- Controller chip on ribbon cable (flex) of the touch sensor possible
- Free design of the flex cable in terms of position, length, and interface
- Single-chip and multi-chip variants
The manufacturer EETI based in Taipei is a specialist for touchscreen controllers. Twelve years of experience in research and development of touchscreen solutions enable EETI to provide controller hardware and firmware for all mainstream touch technologies as well as software and drivers for all major operating systems. EETI touch solutions are projected capacitive, surface capacitive, resistive, surface acoustic wave and infrared, five of the most important touch technologies.
