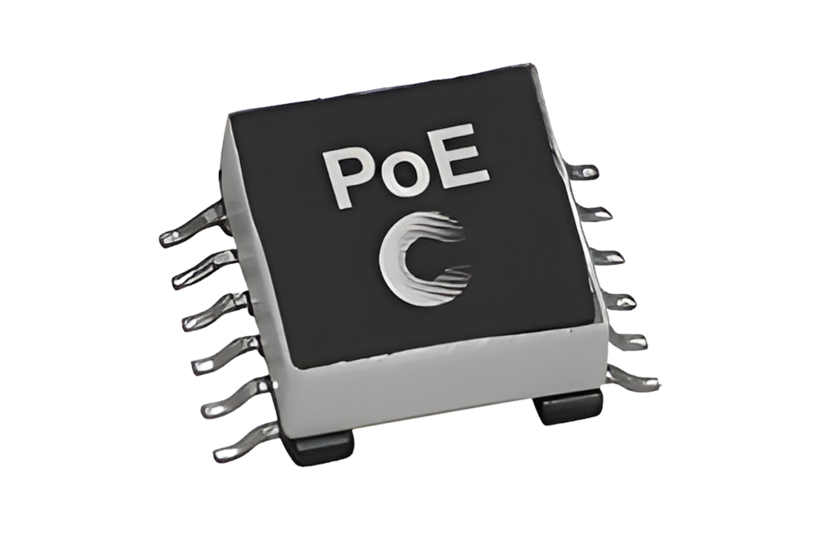

4-13 Watt PoE Series
Power Over Ethernet Transformers
Configurable Transformer
- Versatile design allows multiple output variations
- Flyback topology, 250kHz switching frequency
- Input range from 29.5-60V
- 1500Vac isolation between primary and secondary
- Three power levels: 4, 7 and 13watts
- Low leakage inductance
- 11.0 Volt @ 0.10 amp feedback winding
- Ferrite core material
• For IEEE 802.3af-compliant Power-over-Ethernet applications
• UPS, VoiP Phone, wireless LAN access point, Bluetooth access point, network camera, building access systems
• Retail point-of-information systems
• Vending/gaming machines Environmental Data:
• Storage temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C (range is application specific)
• Solder reflow temperature: +260°C max. for 10 seconds max Packaging:
• Packaging Information: 4 and 7 Watts - 200 parts per 13" reel, 13 Watts - 140 parts per 13" diameter reel
Der Energie-Management-Anbieter Eaton hat im Jahr 2012 das 1833 gegründete Unternehmen Cooper Industries übernommen. Die Markennamen der eingeführten Cooper-Produkte Coiltronics, Powerstor, Cooper-Bussmann und Polysurg bleiben erhalten.
Die Produkte der Eaton Elektronics Division umfassen die Marken Coiltronics (SMD-Induktivitäten), Powerstor (Superkondensatoren), Cooper Bussmann (Sicherungen) und Polysurg (ESD-Schutzelemente).
