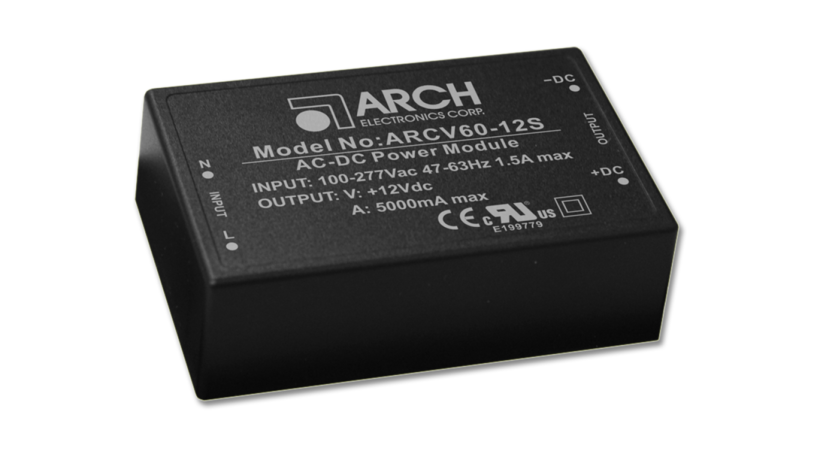

AFCV20, ARCV60

AC-DC converter with OVC III @ EN 61558

In some applications, single-phase or multi-phase AC-DC power supplies are permanently connected to central distribution panels, e.g. electric vehicle chargers or transformers and power supplies permanently connected to the mains.

In these locations, the voltage transformers require additional overvoltage protection (OVCIII) due to the stronger transient amplitudes and energy levels compared to that required when supplied from a wall socket. Power supplies for OVCIII ranges consequently require improved specifications for voltage strengths and clearances compared to the more common types rated for OVC II.

These ARCH AC-DC converters meet the OVCIII specification.


Do you have questions about our products? Please let us know.
HY-LINE AG
+41 52 647 42 00
info@hy-line.ch
  • Over-Voltage Category OVC III (New Edition)
  • Universal Input Range 90-305VAC, 47-63 Hz
  • Class II (double isolation) configuration
  • No Load Power Consumption < 0.1W
  • Isolation 4,3kV
  • Operating attitude 5000m
  • Extreme low temperature: cold start at -40°C, highest up to +85°C
  • Major safety approvals include IEC/EN/UL 62368-1, IEC/EN 61558-1 and IEC/EN 61558-2-16

Arch's product range includes power supplies from 2 to 700 W. These include AC/DC modules (2...150 W) for soldering into a PCB and switching power supplies (60...700 W).

All Arch power supplies are designed for convection cooling.

Arch, founded in 1986 in Taiwan, is an ISO-9001 certified company specializing in the design and manufacture of power supplies.  Arch has in-house development, manufacturing and quality management. The products are manufactured in the factories in Taiwan and China to meet a good price/performance ratio. The product range is aimed at industrial and telecom users.
