OFP-21W33

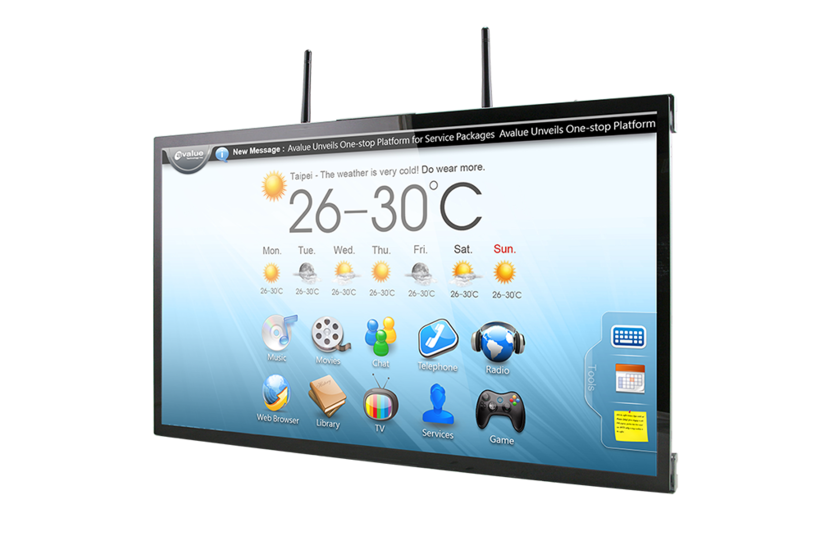

21.5” Full-HD PCAP Multi-Touch Fanless Open Frame Panel PC with Intel Celeron J3455 Processor
This 21.5" Full HD open frame panel PC features a projected capacitive (PCAP) touchscreen and is powered by an Intel® Celeron® J3455 processor. It supports up to 16GB of DDR3L memory via two 204-pin SO-DIMM slots operating at 1600 or 1333MHz. The system includes dual Gigabit Ethernet ports, 4 x USB 3.0, line-out, mic-in, 1 x COM, and video output through DP++ and HDMI/DP. Optional configurations offer expanded I/O with 4 x COM, 4 x USB 2.0, and a 16-bit GPIO via DB9 connector. Designed with a slim yet robust chassis, this panel PC supports fanless operation within a 0°C to 45°C temperature range and accepts a wide voltage input of +12V to +24V DC, making it ideal for industrial and embedded applications.
- 21.5” Full-HD open frame panel PC with PCAP touch
- Intel® Celeron® Processor J3455
- 2 x 204-pin DDR3L 1600 & 1333MHz SO-DIMM supports up to 16GB
- 2x GbE LAN, 4 x USB 3.0, line-out, mic-in, 1 x COM, DP++, HDMI/DP
- Option for 4 x COM, 4 x USB2.0, 16-bit GPIO with DB9 connector
- Slim & strength design
- Fanless operation from 0° ~ 45°C
- Wide voltage input +12 ~ 24Vdc
- Option for Wi-Fi & BT function
- Option for Infineon SLB9665 TPM 2.0
Avalue Technology Inc. develops and manufactures industrial computer solutions in Taiwan and internationally. The portfolio includes computer-on-modules, single-board computers, industrial motherboards, embedded, industrial and panel PCs as well as system solutions. HY-LINE distributes the robust products for use in the areas of healthcare, digital signage, transport and gaming. Avalue Technology Inc. was founded in 2000 and is headquartered in New Taipei City, Taiwan.
