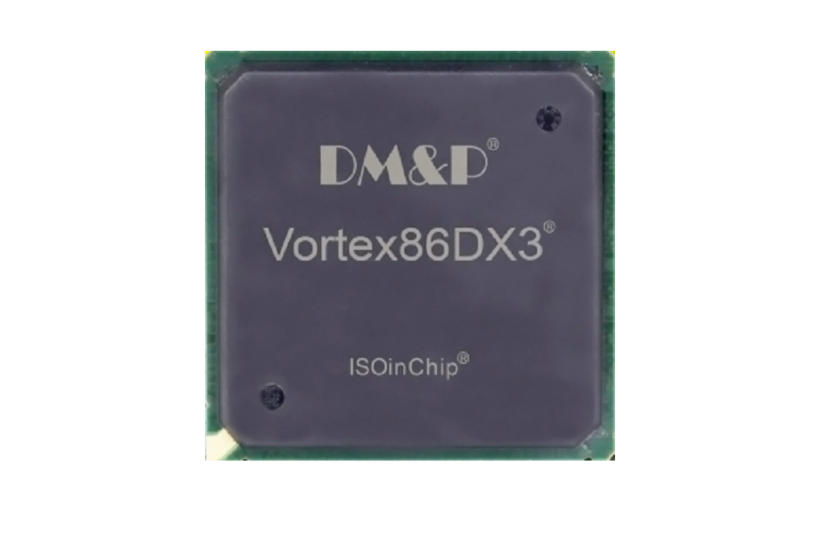

Vortex86DX3 SoC
Flexible and compact x86 CPU
The Vortex86DX3 is a compact ultra-low-power system-on-chip. It is a 32-bit x86 processor that is compatible with DOS, Windows, Linux, QNX, VxWorks and other popular 32-bit operating systems. In its 720-pin BGA package, the Vortex86DX3 packs 32kb L1 cache, 512KB L2 cache, 2.5GHz PCIe bus, DDR3 RAM controller, ISA, I2C, SPI, IPC (Internal Peripheral Controller with DMA and interrupt timer/counter included), Fast Ethernet, UART with FIFO, USB 2. 0 host and IDE/SATA controller to provide an optimal solution for embedded systems and communication products such as thin clients, NAT routers, home gateways, access points and tablet PCs.
- x86 Processor Dual Core 1.0 GHz
- Floating point unit support
- Embedded I / D Separated L1 Cache
- Embedded Unified L2 Cache
- System DDR3 Control Interface
- GPU Control Unit
- Temperature sensor
- MAC Controller x 1
- Embedded 2MB Flash
- JTAG Interface supported for S.W. debugging
- IDE Controller
- PATA 100(HDD x 2) or SD x 2 at Primary Channel
- SATA 1.5Gb/s (1 Port) at Secondary Channel
- PCIE Control Interface x 2
- USB 2.0 Host Support
- HDA Controller
- ISA Bus Interface
- DMA Controller
- Counter / Timers
- Real Time Clock
- FIFO UART Port x 9 ( 9 sets COM Port )
- Parallel Port x 1
- General Programmable I/O
- I2C bus x 2
- MTBF Counter
- ADC Interface x 8
- General Shift Interface Support
- Full Duplex SPI bus x 2
- Input clock: 25 MHz , 14.318MHz, 32.768KHz
- Output clock: DDR3 clock
- Operating Voltage Range
- Core voltage: 0.9V± 5%
- I / O voltage: 1.2V ± 5%, 1.5V ± 5%, 1.8V ± 5%, 3.3 V ± 10 %
- Operating Temperature
- -40°C ~ 85°C (bei 800MHz)
- -25°C ~ 70°C (bei 1GHz)
- Package Type: 31x31mm, 720 Ball PBGA
DMP Electronics Inc., a member of the DM&P Group, was founded in 1989 and develops industrial control systems. Since the beginning DMP focused on the development of x86-based computer-on-a-chip products. The high level of integration, coupled with low power loss makes the single-chip x86 computers an ideal solution for industrial, control, medical and automation applications.
